****  GPR-SLICE version v7.MT is a  MultiThread Software Package  for Ground Penetrating Radar ****

           !! Take advantage of the multiple processors on the computer for super fast  operations !!

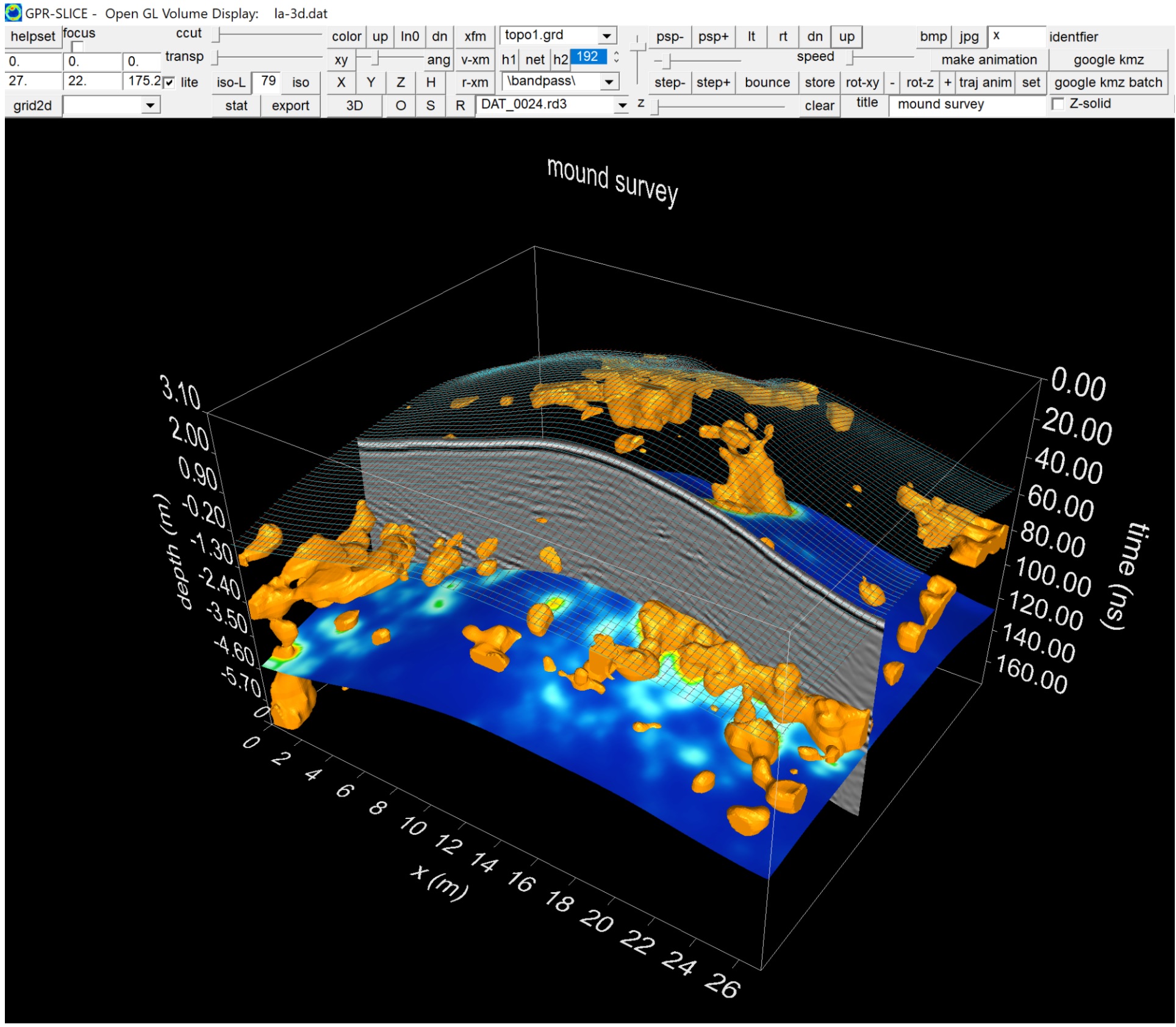

GPR-SLICE survey of a mound using real time topographic warping of radargrams,  topo depth slices and topo warped isosurfaces.

GPR-SLICE OpenGL menus have augmented displays where below surface imagery or drawn objects can be seen overlaid on google earth or site bitmaps

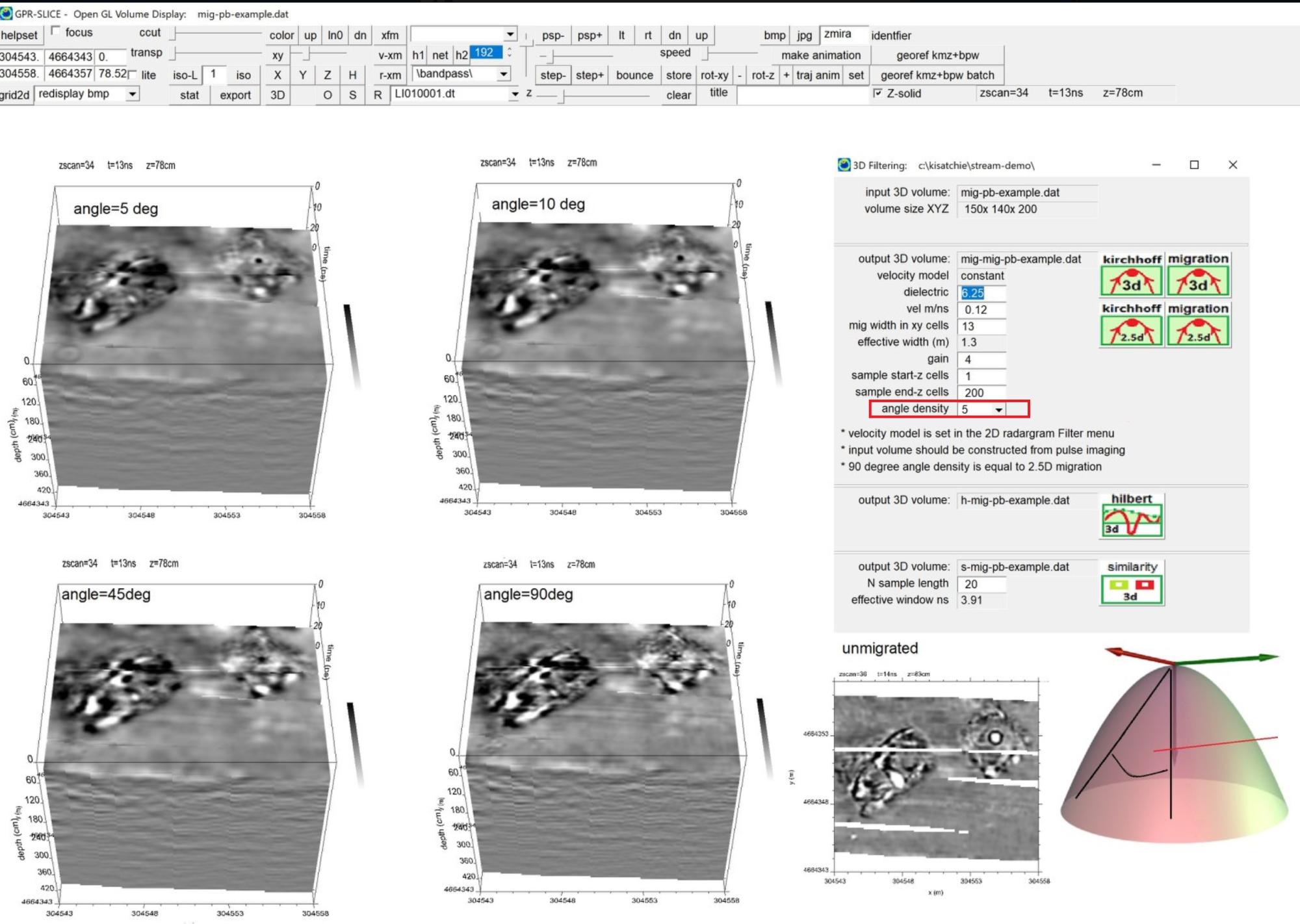

GPR-SLICE 3D migration with options to control angle junctures over the hyperboloid for streamlining processing time.

GPR-SLICE(c)  GPR-SLICE v7.MT Ground Penetrating Radar Imaging Software

GPR-SLICE versiov7.MT with MultiThread Processing is now being delivered on the Subscribers Only page.  Take advantage of the multiple processors on the computer for super fast operations!!

GPR-SLICE v7.MT (1994-2021)  is a comprehensive ground penetrating radar imaging software designed for creation of 2D/3D subsurface images for use in a variety of geotechnical, engineering and archaeological applications.
GPR-SLICE began development in 1990 and became a full commercial software by 1994.   The first Windows version of the software was released in 2001.    The software is directly marketed by the Geophysical Archaeometry Laboratory Inc. and our affliated worldwide distributors.

GPR-SLICE is compatible with all the major manufacturers of GPR including:

      Proceq
      Mala Guideline Geo
      Impulse Radar
      Radarteam
      Sensors and Software
      IDS
      Geophysical Survey Systems Inc
      US Radar
      Ditch Witch
      ERA Technology
      3D Radar of Norway
      UTSI Electronics
      Geoscanners
      Leica
      Ditchwitch
      Subsite
      Zond Radar
      Koden Radar
      GeoTech Russia
      Transient Technologies
      Loza
      SEGY and SEG 2
      Plus customized formats for research radar systems

GPR-SLICE multi-channel extended licenses include integration of:
     Proceq
     Mala Guideline Geo
     ImpulseRadar
     3D Radar
     IDS
     UTSI
     Koden Radar
     Isung
     Radar Portal

     *** with complete integration of GPS and total station


GPR-SLICE applies a unique process of radargram desampling/binning and then recreates GPR data volumes using estimation algorithmsfor single channel - coarsely spaced profile lines.   For multi-channel dataset direct compilation to pulse 3D volumes can be quickly generated without interpolation because of the hi-density acquisition.   GPR-SLICE handles all surveyed data densities to make the most comprehensive subsurface imagery.    Many researchers have migrated to the software because of the professional quality images that can be created in the software.
GPR-SLICE software is designed to remove line noises and artifiacts that show profile directions and pixelation noises from incomplete sampling of the ground.
GPR-SLICE images help interpreters extract hidden information contained in noisy radargrams which would otherwise be lost and never revealed within the raw data.
GPR-SLICE was the first commericial software in 2003 to release complete integration with GPS navigation, including GPR/GPS volume imaging and time slices.  The software is completely integrated for GPS with all the major manufacturers of GPR.  GPR-SLICE is integrated for Total Station navigation where the typical GPS NMEA string formats are used.
GPR-SLICE  was the first software to provide for static corrections that account for the tilt of the antenna over sites with topography.
GPR-SLICE has a unique overlay option, which provides for comprehensive subsurface maps that synthesizes structures located at different depth levels.  Civil engineers that are surveyors of infrastructure can use features in GPR-SLICE to image tunnels and present 3D slices of tunnel or cylindrical volumes.   With the addition of our built-in OpenGL 3D Modules GPR-SLICE Open GL Volume, real time flythroughs, real time isosurface rendering, transparency and fences yield dynamic displays of GPR-SLICE data volumes.  GPR-SLICE includes built-in Open GL options for mixing of 3D time slice volumes,  isosurfaces, horizon surfaces with raw or processed radargrams in the same graphic dialog.
GPR-SLICE has complete Vector navigation formats - random GPR tracks + the yaw, tilt and pitch of the antenna are all included in the most generalized navigation.   Vector navigation is all inclusive of the navigation for regular surveys, GPS, total station navigated surveys, any navigated survey - but with the antenna orientation.  What this means is that any survey of a GPR antenna in 3D space can be mapped and the radarscans projected into their proper location.
GPR-SLICE v7.MT is the first commercial software to provide for vector imaging which had its first introduction in 2009.
GPR-SLICE has been providing support in the software for 4D GPR monitoring.  GPR monitoring is fastly becoming an important market in GPR surveying to reoccupy sites and to determine the differences in time that have occurred.  GPR monitoring of runaways, railway systems, and other critical infrastructures are getting noticed by the engineering community.  GPR time slice differencing since 2003 and recently volume differencing for 4D measurements have become available in 2015.

GPR-SLICE Software features:

2D/3D time slices
3D volume displays, Isosurface Rendering, Fence Plots
Exportable Animation menu
Split-screen options for time slice/radargram anomaly picking
Complete customizable multi- time slice and multi-radargram displays in a single graphic dialog
Easy grid concatenation and appending
Georeferenced images
       KMZ - Google Earth
       BPW, TFW, JPW, PFW - Arc GIS export
       OpenGL Georeference bitmpa overlay
Vector Navigation
       Antenna yaw, pitch and roll used in projecting scans
       Longitudinal tunnel radar survey menu for automatic vector setting
       Radial tunnel survey menu for automatic vector setting
       Meandering track menu and automatic vector setting
Complete GPS Navigation Integration Including:
       GPS 2D/3D Time Slices
       GPS 2D/3D Radargram Displays
       Specialized menu for editting/filtering GPS fallout
       Batch GPS topography corrections
       Builtin UTM utility conversion
       Exportability to GIS (world file creation)
       Direct export to Google Earth (*.kmz image file creation
       Builtin GPS staggering/scan lag latency correction
       Complete GPS integration
       Complete options for GPR drone surverys with auto correction of radargrams to the groundwave reflection
 Open GL Graphics
       2D surface displays and automatic animation creation
       Open GL 3D real time flythroughs, x, y, z, xy fence diagrams, isosurface rendering
       Open  GL 3D radargram displays, with pulse thresholding and automatic animation creation
       Open GL Object drawing for interpretation (pipes, rectangular volumes, spheres etc ) with DXF file creation
       Cylinder volume warping for imaging tunnels
BlueBox (c) Batch  processing
       one button click macros from raw data to radar signal processing to image processing and final 3D volumes!
       one button click macros for xy decoupled concrete imaging for enhancing  rebar to final 3D volume
       ability to save BlueBox setups and load/save for new project applications
Overlay Analysis
        Sy nthesizing single imagery from multiple user defined slice levels with complete transform control
Horizon Detection and Mapping
       Automatic horizon detection
       Layer depth maps using variable layer velocities
       Horizon amplitude profiles and maps
       Horizon slicing in Open GL 3D Volume
4D GPR survey support
      Time slice differencing for GPR montioring
      Radargram differencing for GPR monitoring
     Volume differencing for GPR monitoring
Signal Processing:
      FK Radargram filtering
      0ns scan-by-scan or 0ns line-by-line offset auto detection/editing of radargrams menu
      Migration with variable velocity profiles
      3D/2.5D migration
      Bandpass filtering and spectra menu
      Spectral whitening
      Deconvolution, spectral and spiking
      Hilbert Transform
      Boxcar smoothing
      Background removal
      Regain
      Batch processing for up to 8 filters
Image Processing
      Mosaic correction menu
      2D FFT grid filtering
      Overlay analysis
      Grid math
      Individualized map transform controls
      Grid low/hi pass filtering
2D Geophysical data import
      Magnetometer, Resistivity, EM data and any 2D/3D data.
      Image synthesizing of GPR, Mag, Resistivity and EM using Overlay Analysis

GPR-SLICE was used by the National Geographic Society in 2016  to study the north, west and south walls in KV62 - King Tuts tomb in search of corridors suspected of leading to Nefertitti's tomb.  The results, shown in vector space comparison with a calibration wall reflection from the Treasury Room indicates that no corridors are present behind the walls in King Tuts Tomb at least to 2 meters depth.  A follow-up 2018 survey that probed to a deeper 4 meters behind the walls by the University of Turino in Italy also found no void spaces indicating a hidden room or corridors exist.   (Another survey in 2019 by an unusual surveying group using unshielded antenna in the narrow space of the tomb contradicts these findings - most likely by misrepresenting external engrained noises in the data as being internal to the wall.   In any event - the search continues!!! )

GPR-SLICE drone survey showing a one of many long GPS profiles taken on a site along with a time slice - above YouTube video shows the complete dataset.   (data courtesy Aero 360 Philippines)

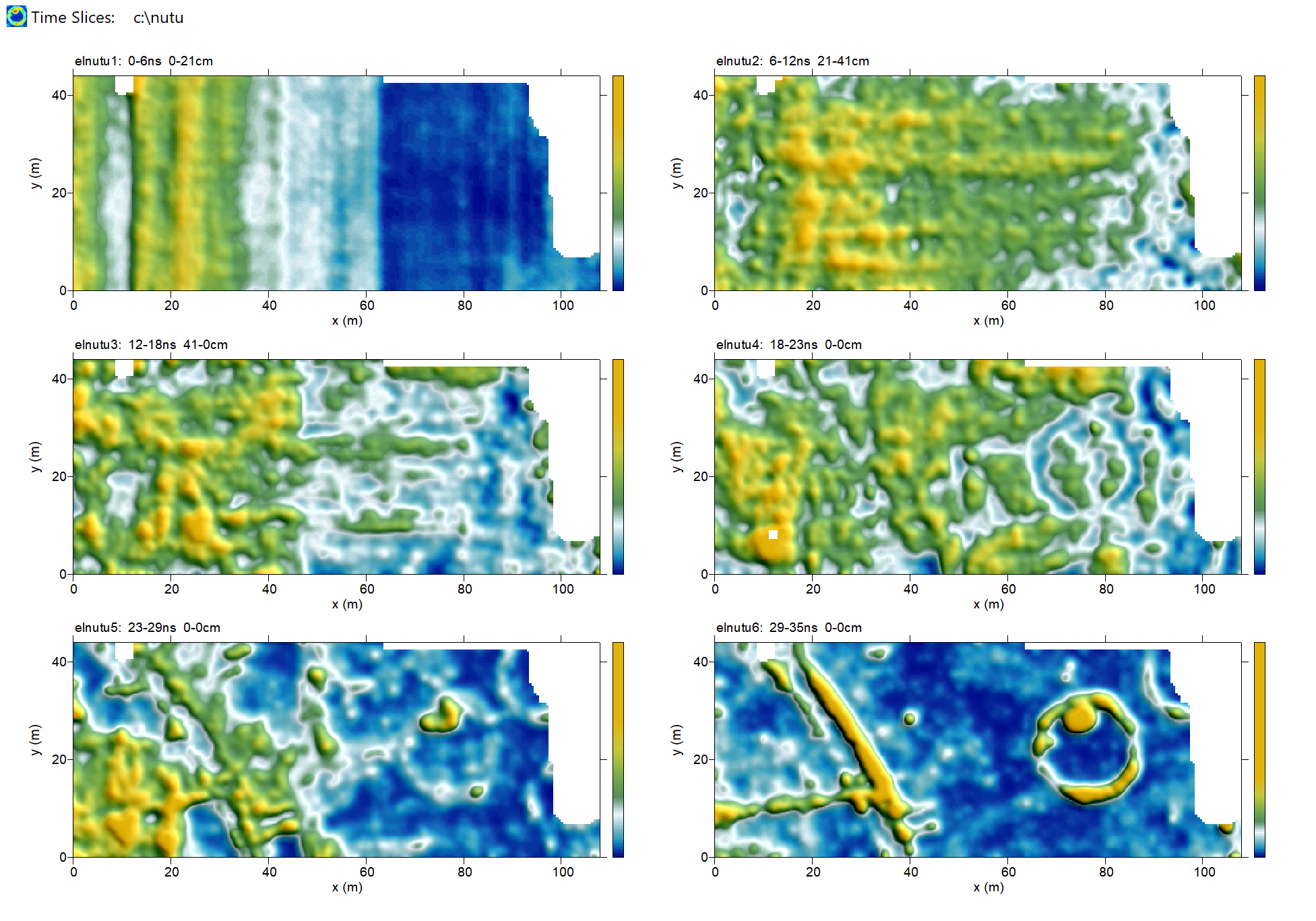

GPR-SLICE survey of the Nutubaru burial mound in Miyazaki, Japan with time slices displayed in shaded color.
